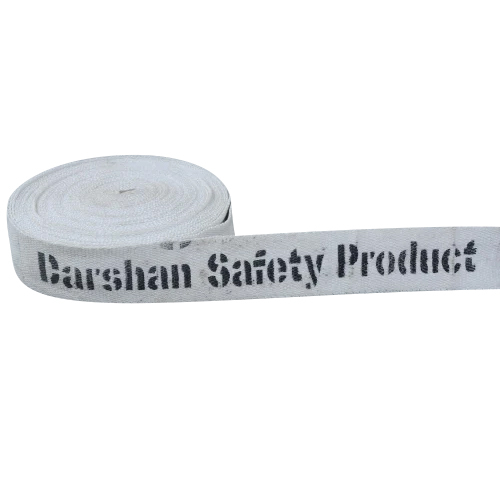

Signature Fiberglass Insulation tape

Name: Signature Fiberglass Insulation tape
Brand: Darshan Safety Zone
Price: 280.0 INR
Availability: InStock

280.0 INR/Meter

Get a Price/Quote

Product Details:

Temperature 650 Celsius (oC)
GSM 1000
Coating Type NA
Glass Type NA
Density 700 Kilogram per cubic meter (kg/m3)
Thickness 3 Millimeter (mm)
Usage & Applications Heat Insulation
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Signature Fiberglass Insulation tape Price And Quantity

Minimum Order Quantity 10 Meter
Price 280.0 INR/Meter

Signature Fiberglass Insulation tape Product Specifications

Width 25 Millimeter (mm)
Surface Treatment NA
Technique Na
Usage Pipe Insulation
Weight 10 Kilograms (kg)
Material Fiberglass
Dimension (L*W*H) 30*10*30 Centimeter (cm)
Color White
Product Type Tape
Temperature 650 Celsius (oC)
GSM 1000
Coating Type NA
Glass Type NA
Density 700 Kilogram per cubic meter (kg/m3)
Thickness 3 Millimeter (mm)
Application Heat Insulation
Usage & Applications Heat Insulation
Shape Flat
Thermal Conductivity 1.3 Watt/Centimeter/C (W/(cm.C)
Length 30 Meter (m)
Height 25 Millimeter (mm)
Size 25 mm X 3 mm

Signature Fiberglass Insulation tape Trade Information

FOB Port Ahmedabad
Payment Terms Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
Supply Ability 1000 Meter Per Month
Delivery Time 10 Days
Sample Available No
Sample Policy Free samples are available
Packaging Details As Per Your Requirement
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications IS CN CE

Product Description

Fiberglass Tape High-Strength Thermal & Electrical Insulation Solution

Key Features

High-performance narrow woven fiberglass strip
Manufactured from twisted strands of fiberglass woven at right angles
Highest glass-to-resin ratio & superior tensile strength
Exceptional thermal resistance & long service life
Available in customizable widths & thicknesses

Technical Specifications

Working Temperature Range: 600C to 900C
Widths: 25 mm, 50 mm, 75 mm, 100 mm (customizable)
Thickness: 3.0 mm, 5.0 mm (customizable)
Electrical Insulation Thickness Options: 7 MIL, 10 MIL
Construction: Low-density yarns for insulation applications

Applications

Electrical insulation for motor coils in high-temperature environments
Stove & oven door seals
Blast furnace insulation
Thermal protection of wires & cables
Exhaust pipe wrapping
General oven & stove insulation

Benefits

Provides reliable thermal & electrical insulation
Withstands high heat while maintaining structural integrity
Enhances energy efficiency & safety
Flexible, easy-to-install & customizable for diverse needs

#FiberglassTape #ThermalInsulation #ElectricalInsulation #HeatResistant #IndustrialSafety #DSZ

Exceptional Heat Insulation for Demanding Environments

This fiberglass insulation tape is engineered to deliver outstanding heat protection, making it suitable for industrial pipe insulation and other high-temperature uses. Its composition allows for long-term durability even in environments reaching up to 650C, ensuring safety and improved energy efficiency in operations where heat control is crucial.

Versatile Applications and Reliable Performance

With a flat, 25 mm-wide profile and a length of 30 meters, this tape fits various installation needs. It provides reliable thermal shielding while remaining lightweight at just 10 kg per roll. This combination of flexibility and resilience suits a broad range of industries, simplifying installation and maintenance.

FAQs of Signature Fiberglass Insulation tape:

Q: How do I apply Signature Fiberglass Insulation Tape for optimal heat insulation?

A: To achieve the best results, clean the surface of the pipe or area where insulation is required, then wrap the tape tightly and evenly to cover the entire length, ensuring overlaps for added protection. No special surface preparation is necessary as the tape is designed for direct application.

Q: What types of environments and temperatures can this fiberglass insulation tape withstand?

A: This tape can endure continuous exposure to temperatures up to 650C, making it suitable for high-heat industrial settings, particularly for insulation around piping and equipment exposed to intense heat.

Q: When should I use fiberglass insulation tape instead of other insulation materials?

A: Choose fiberglass insulation tape when you need flexible, durable heat protection in environments where direct wrapping or contouring around complex shapes is necessary. It is ideal for pipes, fittings, and locations that cannot be easily fitted with rigid insulation boards.

Q: Where is Signature Fiberglass Insulation Tape commonly used?

A: This tape is widely used in industrial facilities across India for pipe insulation, thermal shielding, and heat containment in manufacturing, power plants, refineries, and chemical processing sites.

Q: What is the benefit of the tapes 700 kg/m density and 1.3 W/(cm.C) thermal conductivity?

A: The combination of high density and effective thermal conductivity enhances the tapes ability to minimize heat loss, thus improving the energy efficiency of insulated systems and increasing occupational safety around high-temperature pipes.

Q: Can the tape be cut to size and customized during usage?

A: Yes, the tape is easy to cut and shape as needed for custom applications. Its flexible flat design allows it to fit various diameters and lengths, offering adaptability during installation and maintenance.
