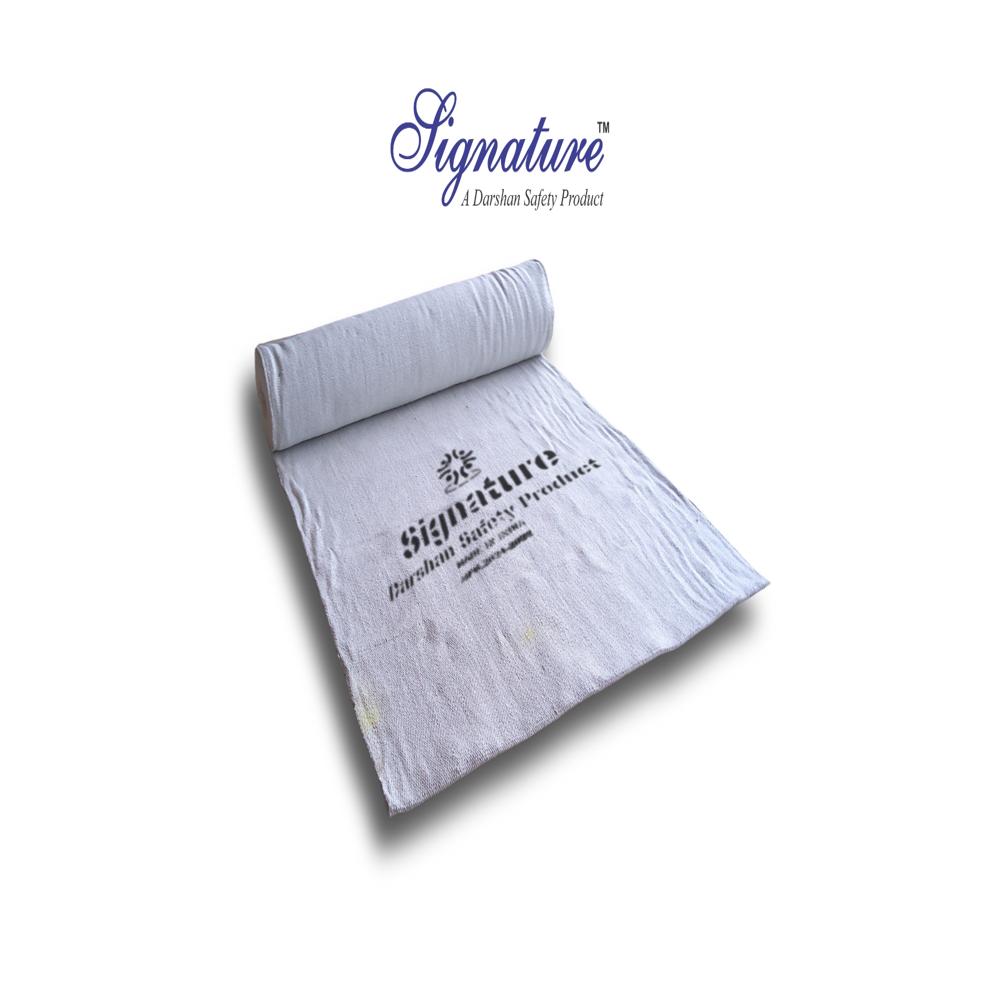

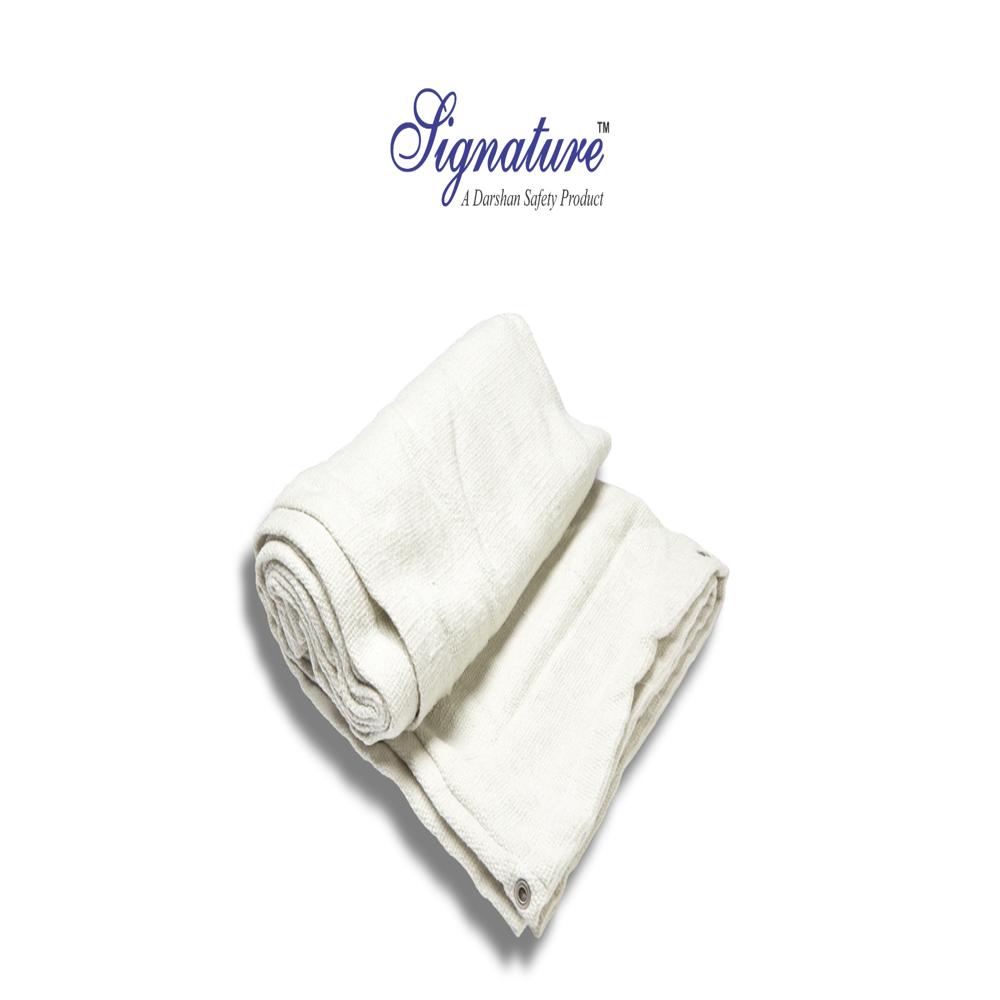

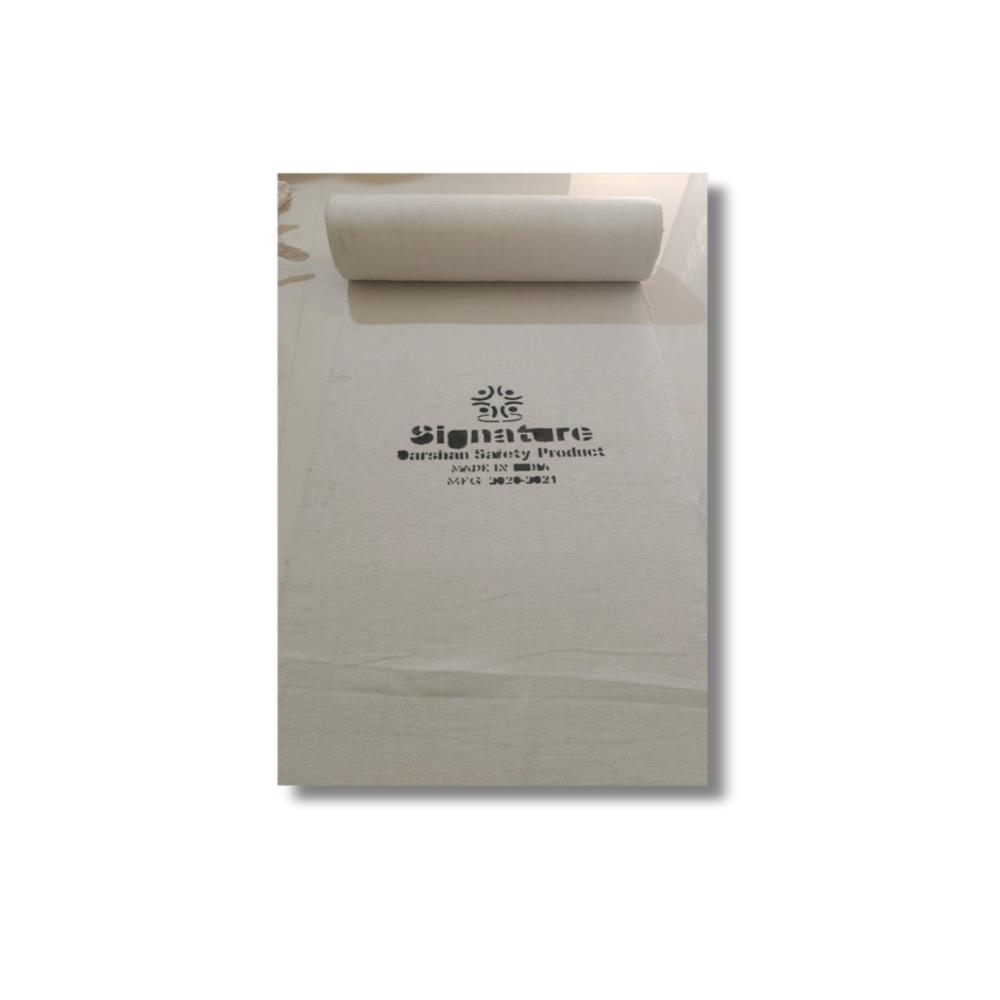

Signature Ceramic Fiber Cloth

Price 13500.0 INR/ Roll

Get a Price/Quote

MOQ : 1 Roll

Signature Ceramic Fiber Cloth Specification

Temperature
Up to 1260°C Celsius (oC)

Thickness
2 mm to 5 mm Millimeter (mm)

Density
0.9 Gram per cubic centimeter(g/cm3)

Shape
Roll

GSM
800 GSM

Usage & Applications
Thermal insulation in industrial furnaces gaskets and wrapping high-temperature piping

Coating Type
Uncoated

Thermal Conductivity
Low thermal conductivity Watt/Meter/K (w/(m.k)

Material
Ceramic Fiber

Application
High-temperature insulation sealing and fireproofing

Technique
Woven with ceramic fiber threads

Surface Treatment
Non-treated

Dimension (L*W*H)
Width: 1 meter Length: Customizable Meter (m)

About Signature Ceramic Fiber Cloth

Ceramic Fiber Fabric DSZCF3.0 High-Temperature Insulation Fabric

Signature Ceramic Fiber Fabric DSZCF3.0 is a woven textile made from premium alumina-silica fibers, specially mechanically needled to deliver enhanced tensile strength and surface integrity. Strong, lightweight, and flexible, this fabric is reinforced with fiberglass filament and optionally with Inconel/alloy steel wire, ensuring exceptional durability even in extreme environments.

Capable of withstanding continuous operating temperatures of 1260 C and short-term exposure up to 1760 C, it is designed for high-temperature applications without deterioration or cristobalite formation.

Key Benefits:

Outstanding thermal insulation and chemical stability
High resistance to thermal shock, corrosion, and abrasion
Effective for continuous and short-term high-temperature exposure
Lightweight, strong, and flexible for versatile use
Reduces heat loss and energy consumption

Applications:

Heat shields for aircraft and spacecraft
Thermal protection for missile systems & propulsion units
Insulation for power plants, reactors, vessels, furnaces, kilns & ducts
Thermal management in energy storage systems (batteries & fuel cells)
Protection in metal casting, glass manufacturing & chemical industries
Industrial heat shields and refractory insulation

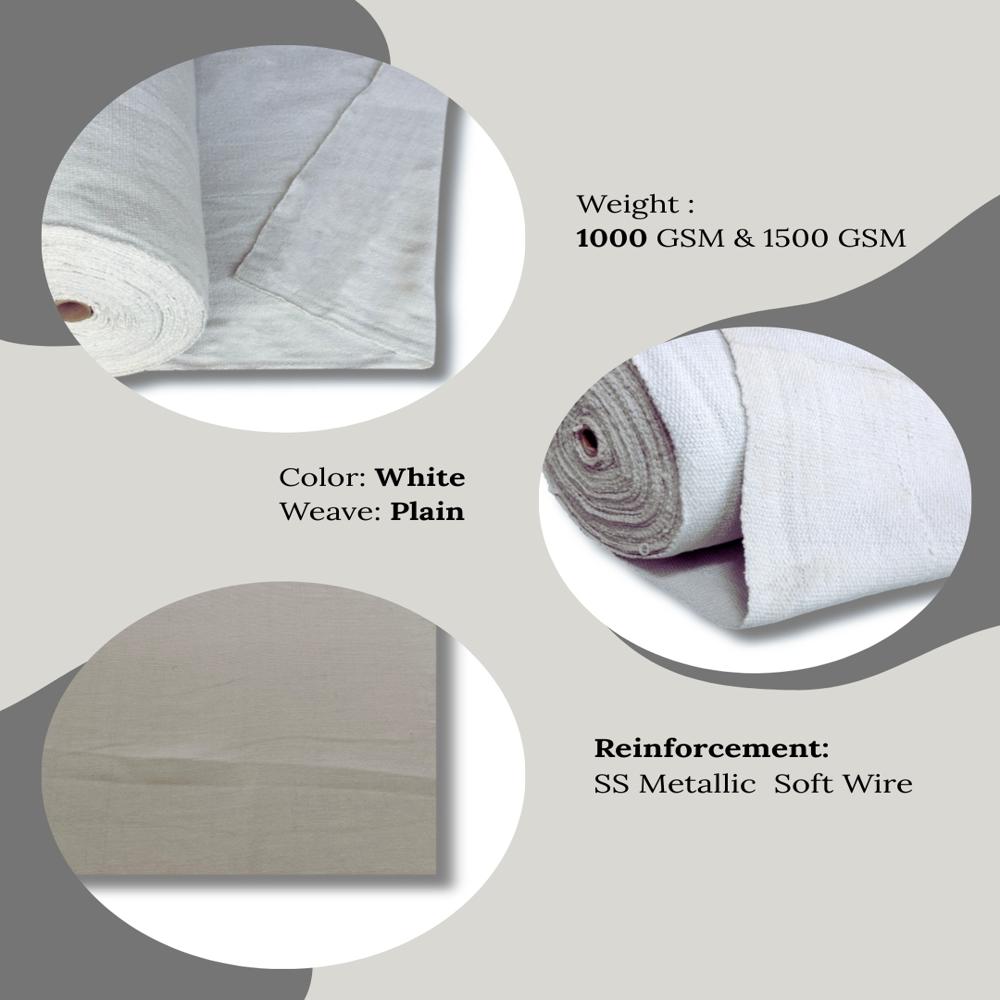

Technical Specifications:

Thickness: 2.0 mm, 3.0 mm, 4.0 mm
Weight: 1000 GSM & 1500 GSM
Color: White
Weave: Plain
Size: 1 x 30 Meter Roll
Reinforcement: SS Metallic Soft Wire
Conductive: Yes
Melting Point: 1760 C

Industry Use:

Aerospace & Defense
Power Generation & Energy Storage
Chemical & Petrochemical Processing
High-Temperature Refractory & Insulation

Superior Heat Resistance and Insulation

Engineered for extreme temperature environments, our ceramic fiber cloth sustains up to 1260C. Its low thermal conductivity minimizes heat loss, ensuring efficient insulation for industrial furnaces, gaskets, and high-temperature piping. The product resists thermal shock, making it reliable for long-term operation where heat management is crucial.

Versatile Industrial Applications

With customizable sizing, the cloth suits a variety of tasksfrom heat-resistant gaskets to wrapping pipes and sealing furnace doors. Its high GSM and woven ceramic fiber construction offer mechanical strength, while the non-treated, uncoated finish allows for further adaptation if necessary. Designed to serve industrial users such as manufacturers and exporters in India.

FAQs of Signature Ceramic Fiber Cloth:

Q: How is the Signature Ceramic Fiber Cloth typically installed in high-temperature applications?

A: The cloth is often wrapped directly around pipes or inserted between furnace panels, cut and shaped as needed to fit the installation. Its woven flexibility and roll form make cutting and handling straightforward, and installation does not typically require special tools.

Q: What benefits does the uncoated, non-treated surface provide?

A: An uncoated, non-treated surface maintains the cloths flexibility and maximizes its thermal insulation properties. It allows for easier customization, ensuring it adapts well to various industrial requirements without introducing chemicals that could interfere in sensitive environments.

Q: When should industries consider using ceramic fiber cloth over other insulation materials?

A: Ceramic fiber cloth is recommended when applications demand resistance to very high temperatures (up to 1260C), flame resistance, and low thermal conductivity. It is especially suitable for situations where lightweight, flexible, and easy-to-install insulation is essential.

Q: Where is this product most commonly applied?

A: Signature Ceramic Fiber Cloth is used in industrial furnaces, as gaskets for sealing, in wrapping high-temperature piping, and for fireproofing applications. It is commonly selected by industries such as metalworking, petrochemical, and power generation.

Q: What is the manufacturing process of this ceramic fiber cloth?

A: The cloth is produced by weaving high-purity ceramic fiber threads, resulting in a fabric that combines mechanical integrity with thermal insulation. The process yields rolls of cloth with uniform density and consistent thickness, ranging from 2 mm to 5 mm.

Q: How does low thermal conductivity benefit high-temperature insulation?

A: Low thermal conductivity slows heat transfer, thereby reducing energy losses and maintaining temperature stability inside furnaces or pipelines. This property enhances energy efficiency and improves process control in industrial settings.
